Product Details
● Ultra Fast Recovery
● 175°C Junction Temperature
● VRRM 100 to 200 Volts
● 1 Amp Current Rating
● tRR 30ns Max.
Product Description
Type | Description |
|---|---|
Category | Power Supplies - Board Mount DC DC Converters |
Mfr | CUI Inc. |
Series | VHE100W (100W) |
Packaging | Box |
Part Status | Active |
Type | Isolated Module |
Number of Outputs | 1 |
Voltage - Input (Min) | 18V |
Voltage - Input (Max) | 75V |
Voltage - Output 1 | 5V |
Voltage - Output 2 | - |
Voltage - Output 3 | - |
Current - Output (Max) | 20A |
Power (Watts) | 100 W |
Voltage - Isolation | 1.5 kV |
Applications | ITE (Commercial) |
Features | Remote On/Off, OCP, OTP, OVP, SCP, UVLO |
Operating Temperature | -40°C ~ 105°C |
Efficiency | 92% |
Mounting Type | Through Hole |
Package / Case | 9-DIP Module |
Size / Dimension | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) |
Control Features | Enable, Active High |
Approval Agency | EN |
Base Product Number | VHE100W |
Product Photos

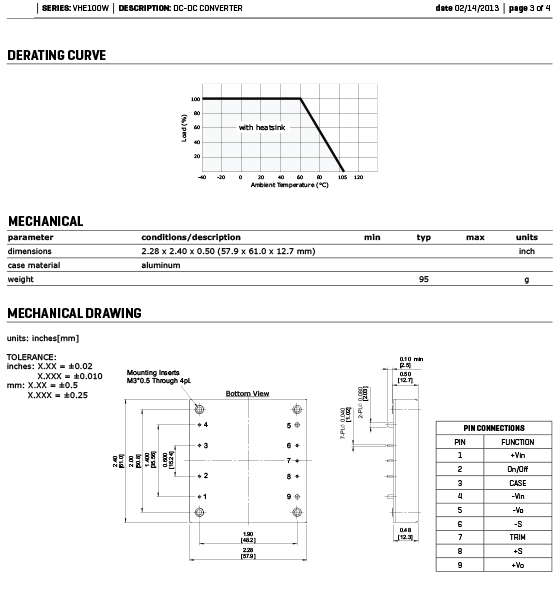

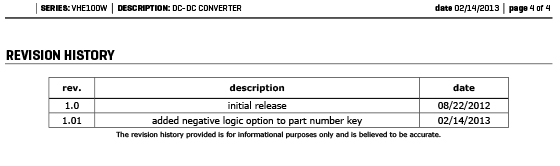

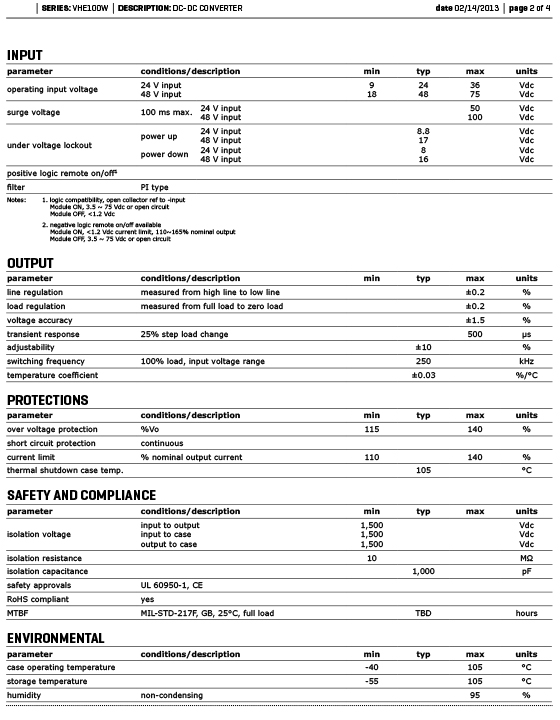

Product datasheet
For more information, please download
