Product Descriptions
The ZXLD1356 is a continuous mode inductive step-down converter, designed for driving single or multiple series connected LEDs efficiently from a voltage source higher than the LED voltage. The device operates from an input supply between 6V and 60V and provides an externally adjustable output current of up to 550mA. Depending upon supply voltage and external components, this can provide up to 30 watts of output power.
The ZXLD1356 has been qualified to AECQ100 Grade 1 enabling operation in ambient temperatures from -40°C to +125°C
Output current can be adjusted above, or below the set value, by applying an external control signal to the 'ADJ' pin. Enhanced output current dimming can be achieved by applying a PWM signal to the ‘ADJ’ pin.
Product Features
? Typically better than 0.8 percent output current accuracy
? Simple and with low part count
? Single pin on/off and brightness control using DC voltage or PWM
? PWM resolution up to 1000:1
? High efficiency (up to 97 percent)
? Wide input voltage range: 6V to 60V
? Inherent open-circuit LED protection
Product Applications
? Low Voltage Halogen Replacement LEDs
? Automotive Lighting
? Low Voltage Industrial Lighting
? LED Back-Up Lighting
? Illuminated Signs
? Emergency Lighting
? SELV Lighting
? Refrigeration Lights
Specifications
| Attribute | Attribute value |
| Model | ANSC-M2502212394 |
| Product Model | ZXLD1356ET5TA |
| Manufacturer: | Diodes Incorporated |
| Product Category: | LED Lighting Driver ICs |
| RoHS: | Details |
| Brand: | Diodes Incorporated |
| Features: | PWM Dimming, Open LED Protection |
| Input Voltage: | 6 V to 60 V |
| Input Voltage - Max: | 60 V |
| Input Voltage - Min: | 6 V |
| Maximum Operating Temperature: | + 125 C |
| Minimum Operating Temperature: | - 40 C |
| Mounting Style: | SMD/SMT |
| Number of Channels: | 1 Channel |
| Number of Outputs: | 1 Output |
| Operating Frequency: | 500 kHz |
| Output Current: | 550 mA |
| Output Voltage: | 60 V |
| Package / Case: | TSOT-23-5 |
| Packaging: | Reel |
| Packaging: | Cut Tape |
| Packaging: | MouseReel |
| Pd - Power Dissipation: | 1 W |
| Product Type: | LED Lighting Drivers |
| Series: | ZXLD1356 |
| Factory Pack Quantity: | 3000 |
| Subcategory: | Driver ICs |
| Supply Current - Max: | 550 mA |
| Topology: | Buck |
| Unit Weight: | 0.000222 oz |

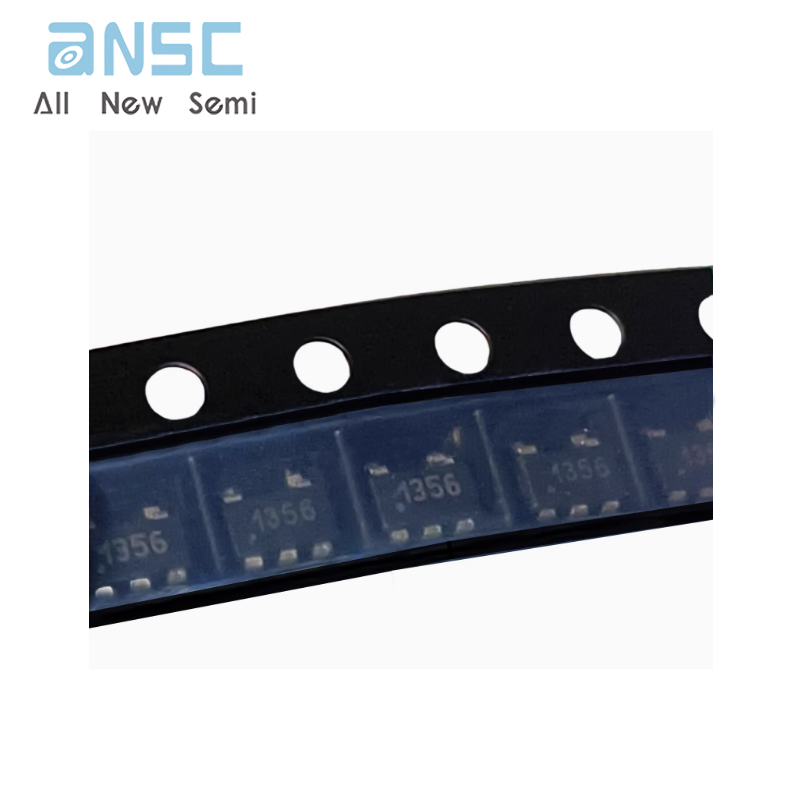

Actual product photos
