Product Parameters

Input voltage: DC5V~9V

LED light model: SK6812

Product Descriptions

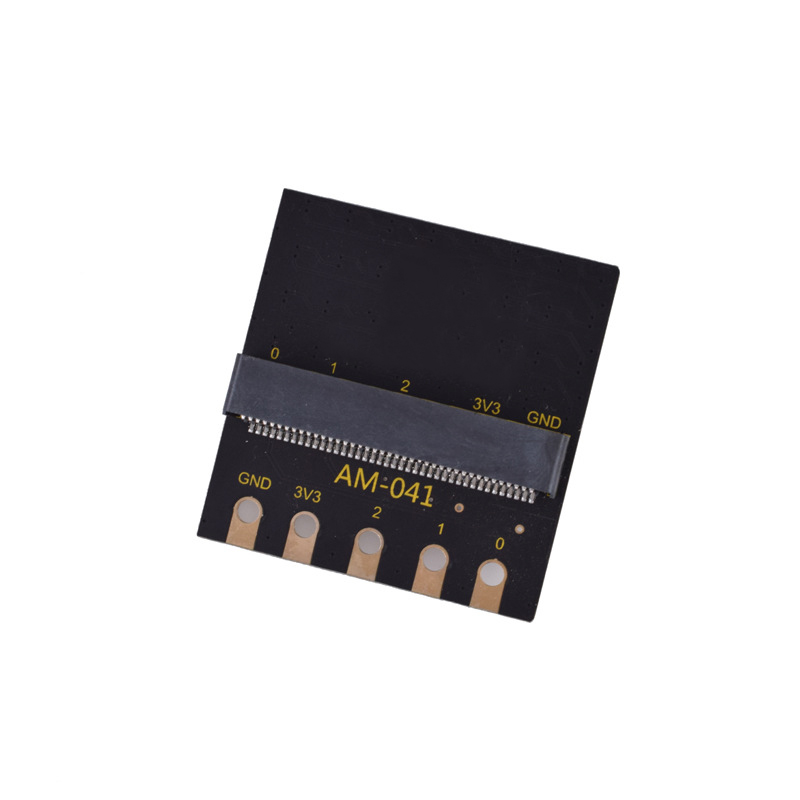

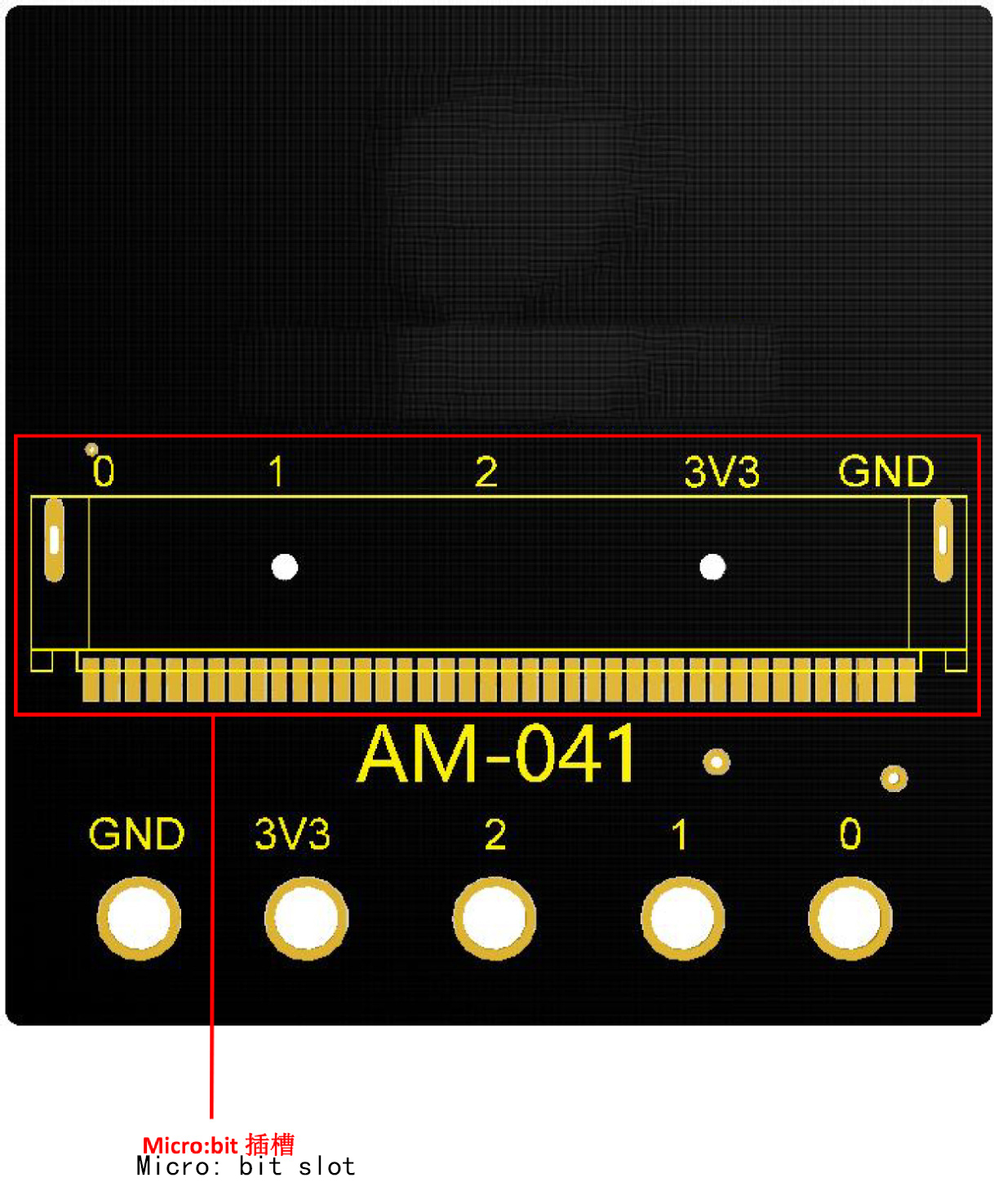

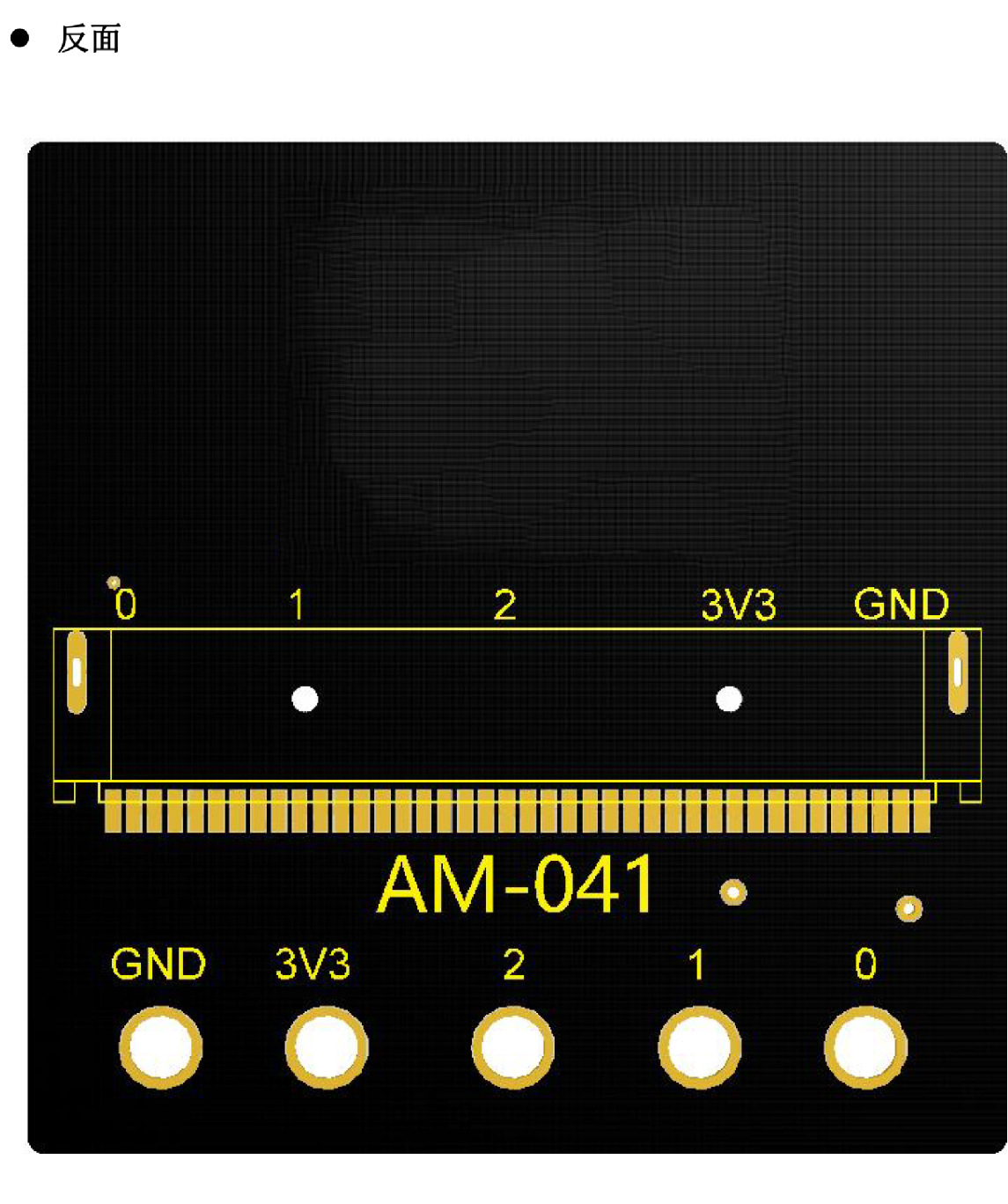

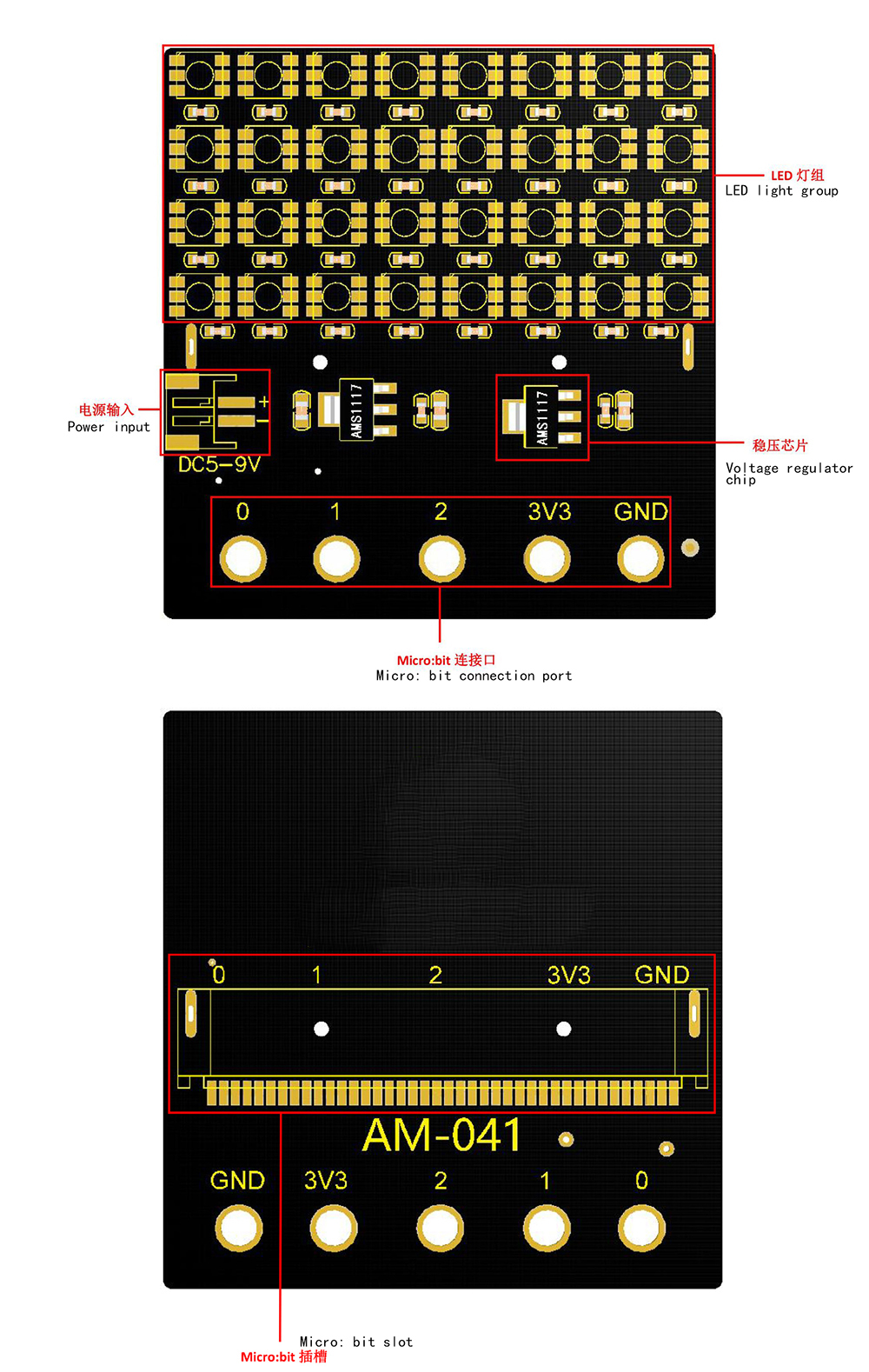

This product consists of 32 SK6812 LEDs, each of which is equipped with a capacitor to ensure the stability of the circuit. The lamp group is arranged in a 4 * 8 rectangular lattice. Control by connecting to the micro: bit control board. The board carries two 3.3V adjustment chips, one supplying power to the micro: bit control board and the other supplying power to 32 SK6812 LED lights. The module has independent power supply channels and two ways of connecting to the micro: bit control board.

When in use, input a DC power supply of 5-9V, upload the control code to the micro: bit control board, and then insert the control board into the module to control 32 SK6812 LED lights to display multiple colors.

Product Functions

(4) Insert the micro: bit control board into AM-041 and provide a DC 5V-9V power supply to AM-041. At this point, you will see the AM-041 emit dazzling lights.

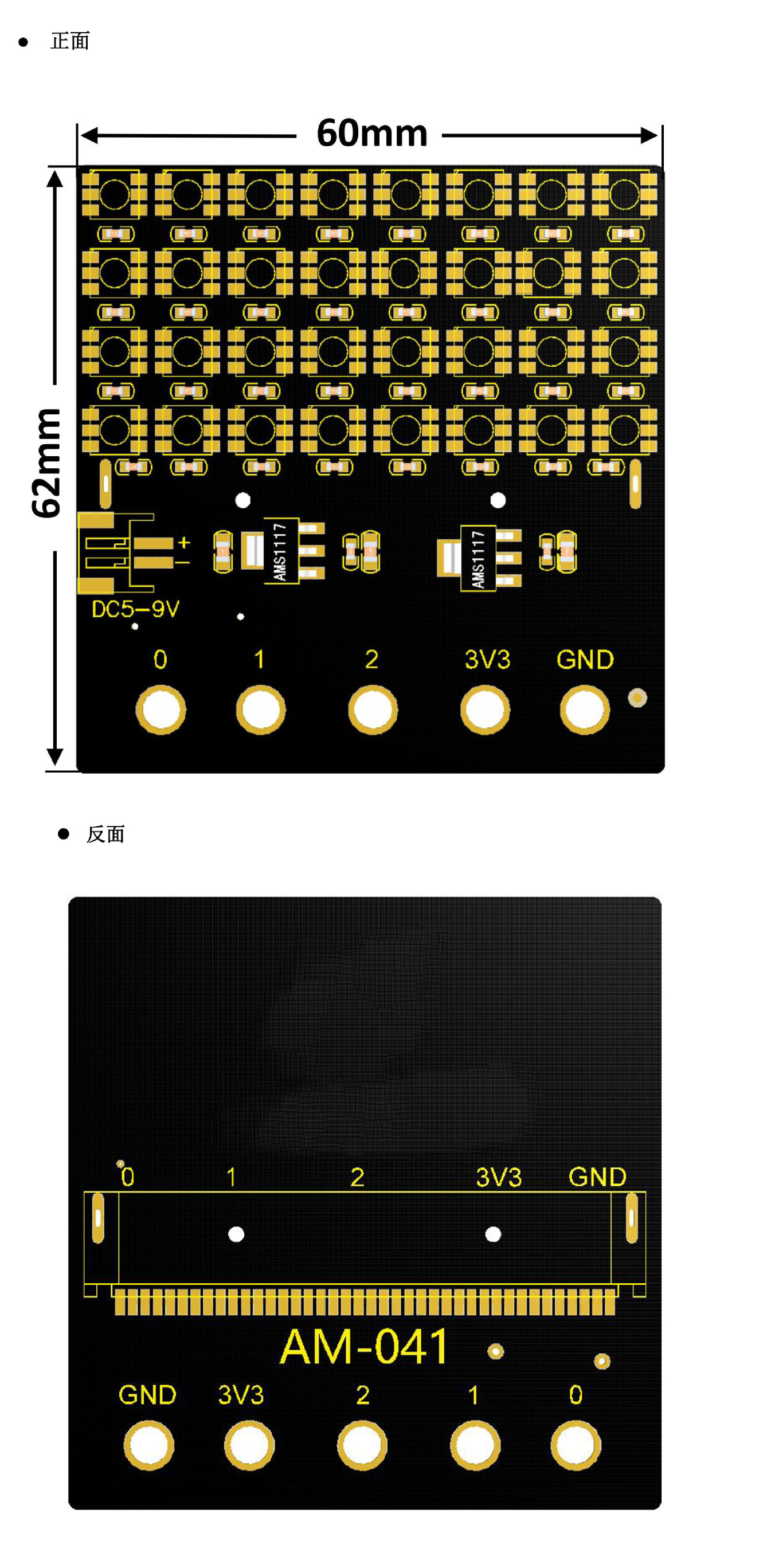

Product Size

Product Show
