Product Descriptions

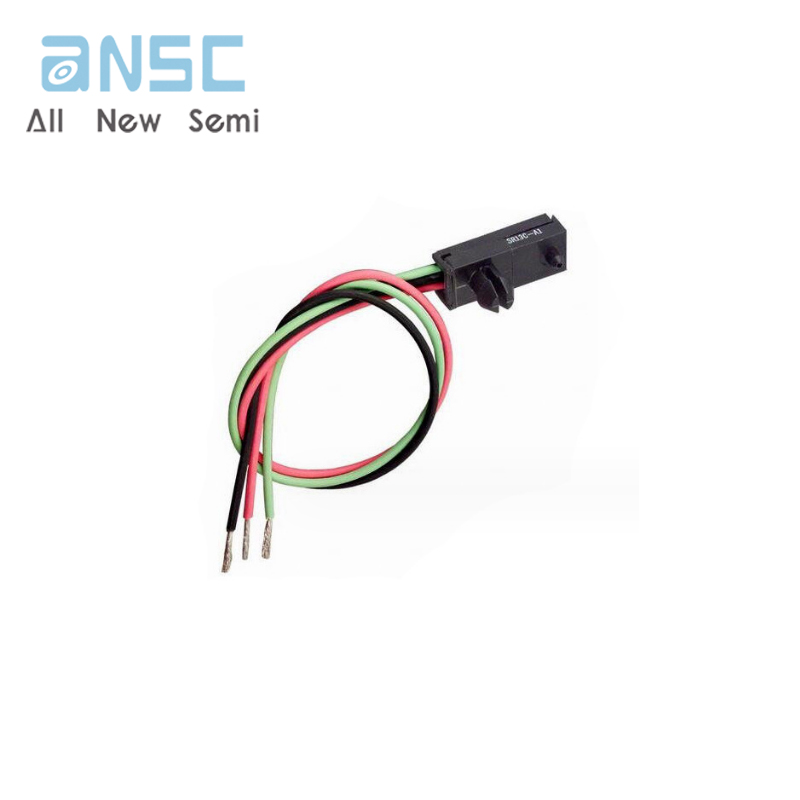

The newly introduced SR13/15 Series package enhancements permit quick and easy sensor installation, increasing the usability of the SS400

Series.

These devices can be installed without additional mounting hardware. The snap-in and flat mount sensor packages can house any of the present

SS400 Series sensors or any similarly sized sensing elements. The packages also provide varying 24AWG Radox leadwire lengths or connector

capabilities.

The SS400 Series position sensors have a thermally balanced integrated circuit that provides predictable performance for the -40 C to +150 C

operating temperature range. The SS400 Series band gap regulation provides stable operation over 3.8 to 30 VDC. Current consumption is 10

mA at +40 C ambient temperature. SS400 Series sensors are capable of continuous 20 mA sinking output. The sensors may be cycled as high as

50 mA maximum. Bipolar, unipolar and latching magnetics are available.

Product Features

? 3.8 to 30 VDC supply voltage

? Digital current sinking output

? Snap-in or flat mount packages

? Quad-Hall design eliminates stress effects

? Temperature compensated magnetics

? Bipolar, unipolar and latching magnetics

? High output capability, 50mA absolute maximum

? Operating temperature range -40 C to +150 C

? Varying leadwire lengths of 24 AWG Radox wire
