Product Descriptions

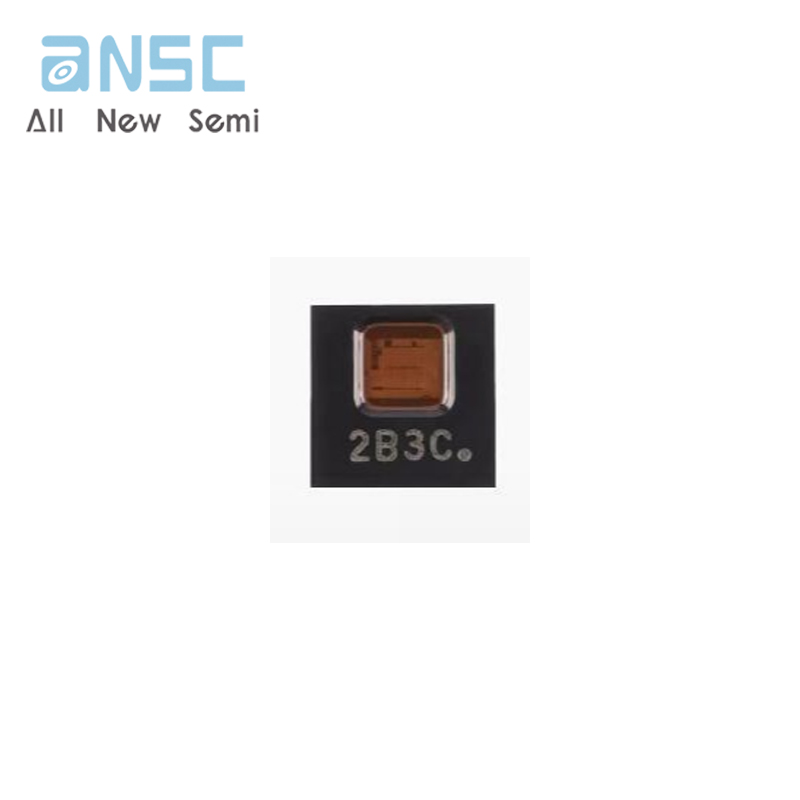

The HDC2080 device is an integrated humidity and temperature sensor that provides high accuracy measurements with very low power

consumption in a small DFN package. The capacitive-based sensor includes new integrated digital features and a heating element to dissipate

condensation and moisture.

The HDC2080 digital features include programmable interrupt thresholds to provide alerts and system wake-ups without requiring a

microcontroller to be continuously monitoring the system. Combined with programmable sampling intervals, a low power consumption, and a

support for a 1.8-V supply voltage, the HDC2080 is designed for batteryoperated systems.

The HDC2080 provides high accuracy measurement capability for a wide range of environmental monitoring and Internet of Things (IoT)

applications such as smart thermostats and smart home assistants. For designs where printed-circuit board (PCB) area is critical, a smaller CSP

package option is available thru the HDC2010 with complete software compatibility with the HDC2080.

For applications with strict power-budget restrictions, Auto Measurement Mode enables the HDC2080to automatically initiate temperature and

humidity measurements. This feature allows users to configure a microcontroller into deep sleep mode because the HDC2080 is no longer

dependent upon the microcontroller to initiate a measurement.

Product Feature

? Relative humidity range: 0% to 100%

? Humidity accuracy: ±2% (typical), ±3% (maximum)

? Temperature accuracy: ±0.2°C (typical), ±0.4°C (maximum)

? Sleep mode current: 50 nA (typical), 100 nA (maximum )

? Average supply current (1 measurement/second)

– 300 nA: RH% only (11 bit)

– 550 nA: RH% (11 bit) + temperature (11 bit)

? Temperature range:

– Operating: –40°C to 85°C

– Functional: –40°C to 125°C

? Supply voltage range: 1.62 V to 3.6 V

? Available auto measurement mode

? I2C interface compatibility

Product Applications

? Smart thermostats

? Smart home assistants

? Washer/dryers

? HVAC systems

? Inkjet printers
