Product Descriptions

The ADIS16497 is a complete inertial system that includes a triaxis gyroscope and a triaxis accelerometer. Each inertial sensor in the ADIS16497

combines industry leading iMEMS? technology with signal conditioning that optimizes dynamic performance. The factory calibration

characterizes each sensor for sensitivity, bias, alignment, and linear acceleration (gyroscope bias). As a result, each sensor has its own dynamic

compensation formulas that provide accurate sensor measurements.

The ADIS16497 provides a simple, cost effective method for integrating accurate, multiaxis inertial sensing into industrial systems, especially

when compared with the complexity and investment associated with discrete designs. All necessary motion testing and calibration are part of

the production process at the factory, greatly reducing system integration time. Tight orthogonal alignment simplifies inertial frame alignment

in navigation systems. The serial peripheral interface (SPI) and register structure provide a simple interface for data collection and configuration

control.

The footprint and connector system of the ADIS16497 enable a simple upgrade from the ADIS16375, ADIS16480, ADIS16485, ADIS16488A, and

ADIS16490. The ADIS16497 is available in an aluminum package that is approximately 47 mm × 44 mm × 14 mm and includes a standard

connector interface.

Product Feature

Triaxial, digital gyroscope

±125°/sec, ±450°/sec, ±2000°/sec range options

±0.05° axis to axis misalignment error

±0.25° (maximum) axis to package misalignment error

0.8°/hr in-run bias stability (ADIS16497-1)

0.09°/√hr angular random walk (ADIS16497-1)

Triaxial, digital accelerometer, ±40 g

13 μg in run bias stability

Triaxial, delta angle and delta velocity outputs

Factory calibrated sensitivity, bias, and axial alignment

Calibration temperature range: ?40°C to +85°C

SPI compatible

Programmable operation and control

Automatic and manual bias correction controls

Configurable FIR filters

Digital I/O: data ready, external clock

Sample clock options: internal, external, or scaled

On demand self test of inertial sensors

Single-supply operation: 3.0 V to 3.6 V

1500 g mechanical shock survivability

Operating temperature range: ?40°C to +105°C

Product Applications

Precision instrumentation, stabilization

Guidance, navigation, control

Avionics, unmanned vehicles

Precision autonomous machines, robotics

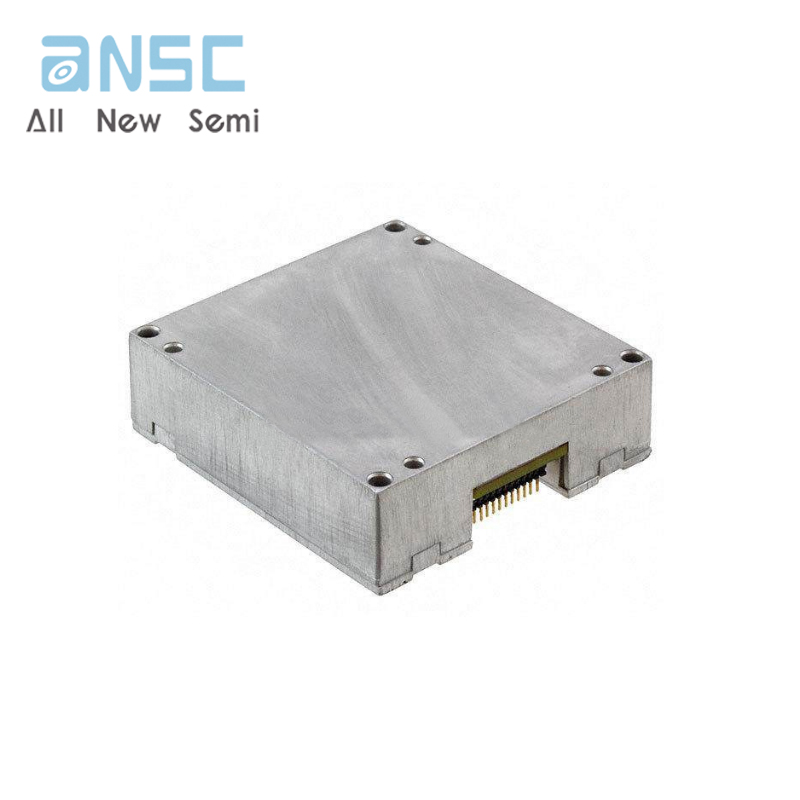

Product Images
