Product Details

  Description

The BME280 is a digital humidity, pressure, and temperature sensor that is based on well-established sensing principles. The sensor module is housed in a metal-lid LGA package with a footprint of 2.5 2.5 mm2 and a height of 0.93 mm. Because of its small size and low power consumption, it can be used in battery-powered devices such as handsets, GPS modules, and watches. The BME280 digital pressure sensor is register and performance compatible with the Bosch Sensortec BMP280.

The BME280 performs admirably in all applications requiring humidity and pressure measurement. These emerging applications of home automation control, indoor navigation, fitness, and GPS refinement necessitate both high accuracy and low TCO. The humidity sensor has an extremely fast response time and high overall accuracy over a wide temperature range, making it ideal for fast context awareness applications. The pressure sensor is an absolute barometric pressure sensor with significantly higher accuracy and resolution than the Bosch Sensortec BMP180 and significantly lower noise. The noise and resolution of the integrated temperature sensor have been optimized. Its output is used to compensate the pressure and humidity sensors for temperature and can also be used to estimate the ambient temperature.

  Features

• Package: 2.5 mm x 2.5 mm x 0.93 mm metal lid LGA

• Digital interface: I2C (up to 3.4 MHz) and SPI (3 and 4 wire, up to 10 MHz)

• Supply voltage: VDD main supply voltage range: 1.71 V to 3.6 V

                                   VDDIO interface voltage range:1.2 V to 3.6 V

• Current consumption :

         1.8 μA @ 1 Hz humidity and temperature

         2.8 μA @ 1 Hz pressure and temperature

         3.6 μA @ 1 Hz humidity, pressure and temperature

         0.1 μA in sleep mode

• Operating range: -40--+85 ℃, 0-100 % rel. humidity, 300--1100 hPa

• Humidity sensor and pressure sensor can be independently enabled / disabled

• Register and performance compatible to Bosch Sensortec BMP280 digital pressure sensor

• RoHS compliant, halogen-free, MSL1

  Applications

• Context awareness, e.g. skin detection, room change detection

• Fitness monitoring / well-being

• Warning regarding dryness or high temperatures

• Measurement of volume and air flow

• Home automation control

• control heating, venting, air conditioning (HVAC)

• Internet of things

• GPS enhancement (e.g. time-to-first-fix improvement, dead reckoning, slope detection)

• Indoor navigation (change of floor detection, elevator detection)

• Outdoor navigation, leisure and sports applications

• Weather forecast

• Vertical velocity indication (rise/sink speed)

Product Description

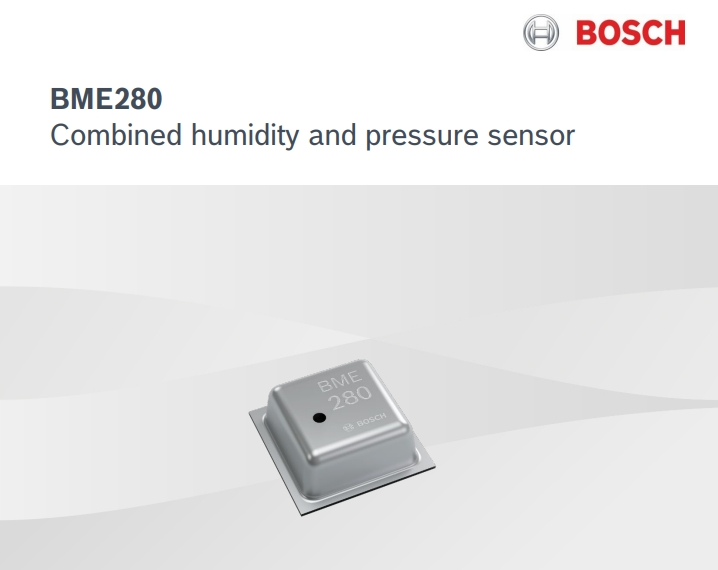

Actual image of the product

Product Attributes

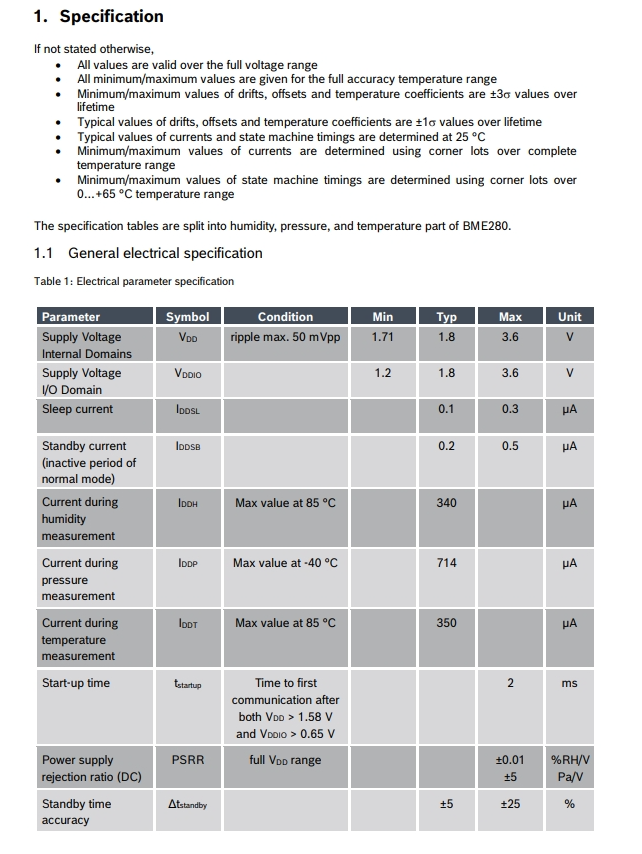

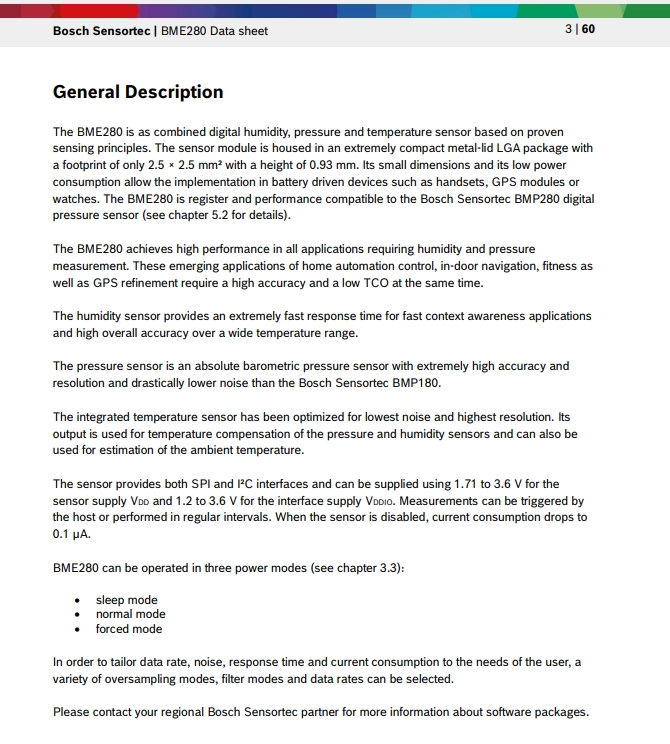

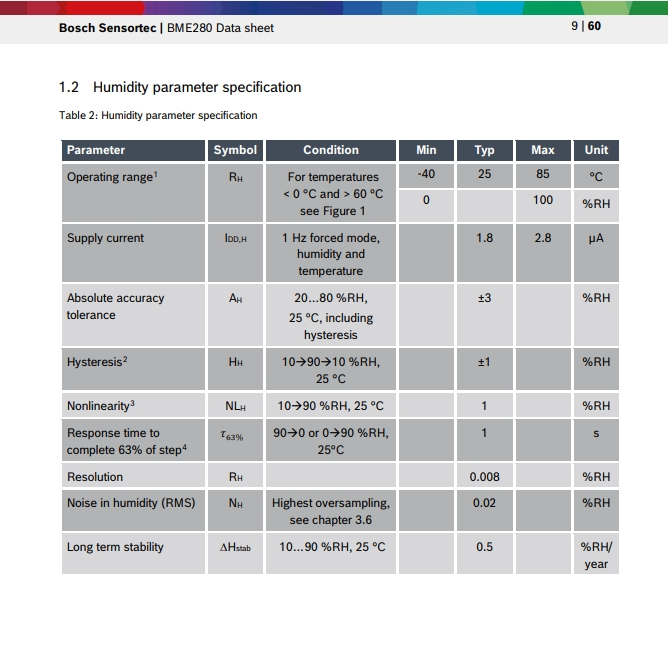

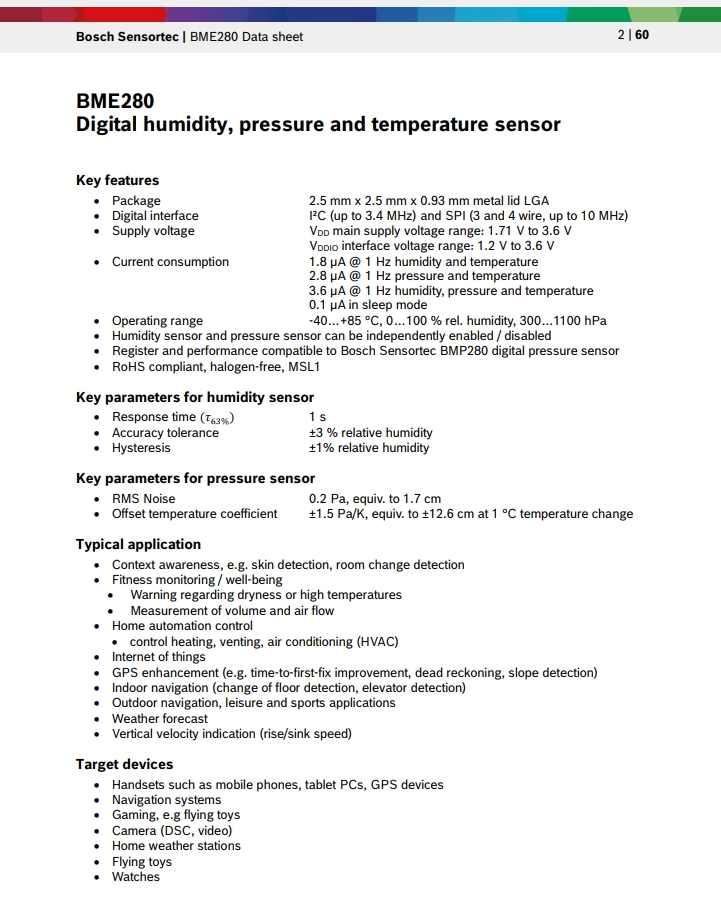

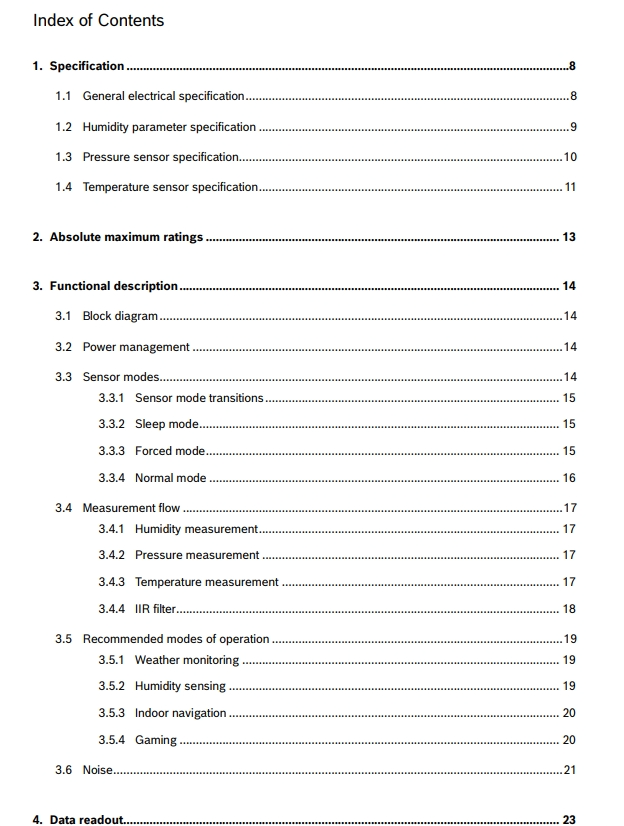

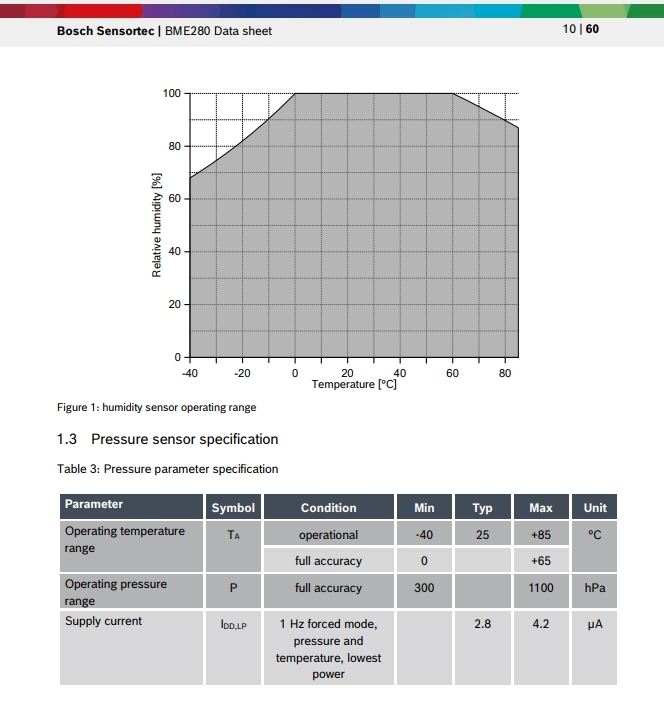

Product datasheet

For more information, please download
