Product Details

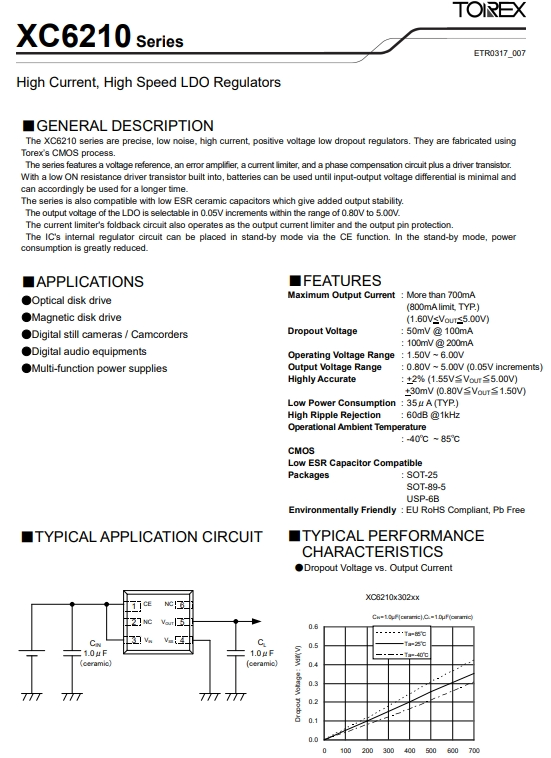

■GENERAL DESCRIPTION
The XC6210 series are precise, low noise, high current, positive voltage low dropout regulators. They are fabricated using
Torex’s CMOS process.

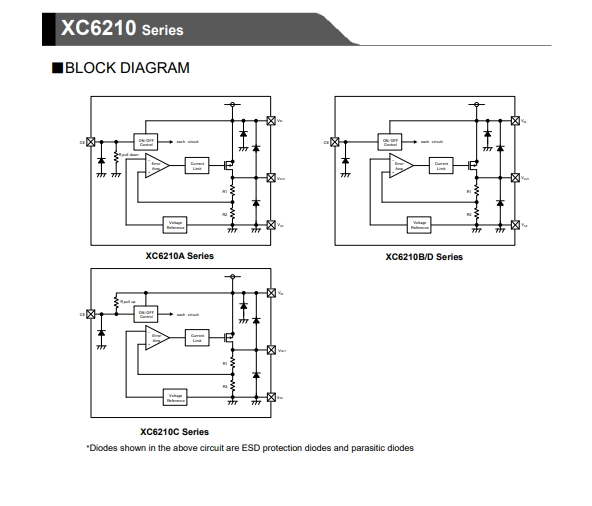

The series features a voltage reference, an error amplifier, a current limiter, and a phase compensation circuit plus a driver transistor.
With a low ON resistance driver transistor built into, batteries can be used until input-output voltage differential is minimal and
can accordingly be used for a longer time.
The series is also compatible with low ESR ceramic capacitors which give added output stability.
The output voltage of the LDO is selectable in 0.05V increments within the range of 0.80V to 5.00V.
The current limiter's foldback circuit also operates as the output current limiter and the output pin protection.

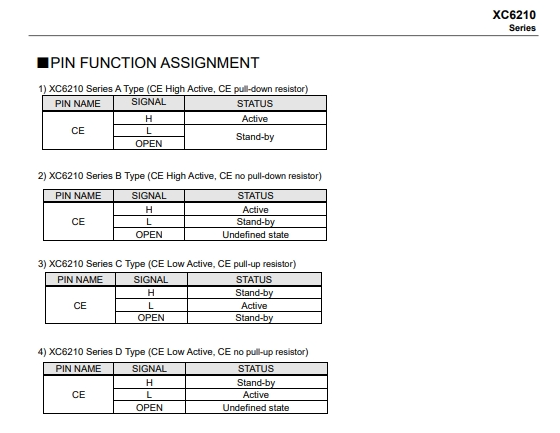

The IC's internal regulator circuit can be placed in stand-by mode via the CE function. In the stand-by mode, power
consumption is greatly reduced.
■APPLICATIONS
●Optical disk drive
●Magnetic disk drive
●Digital still cameras / Camcorders
●Digital audio equipments
●Multi-function power supplie
Product Description
| ANSC PART# | ANSC- XC6210B332MR-G |
| Part# | XC6210B332MR-G |
| Type： | Integrated Circuits(ICs) |
| Manufactor | TOREX |
| DC | new |
| Package / Case | SOT23-5 |
| Supplier Device Package | Tape & Reel (TR)Cut Tape (CT) |
Product Attributes
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear, Low Drop Out (LDO) Regulators | |
| Mfr | Torex Semiconductor Ltd |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| / | |
| Product Status | Active |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.075V @ 100mA |
| Current - Output | 700mA |
| Current - Quiescent (Iq) | 55 碌A(chǔ) |
| PSRR | 60dB (1kHz) |
| Control Features | Enable |
| Protection Features | Over Current |
| Operating Temperature | -40擄C ~ 85擄C |
| Mounting Type | Surface Mount |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-25-5 |
| Base Product Number | XC6210 |
Product Data Book
Please download the more product specifications XC6210B332MR-G
