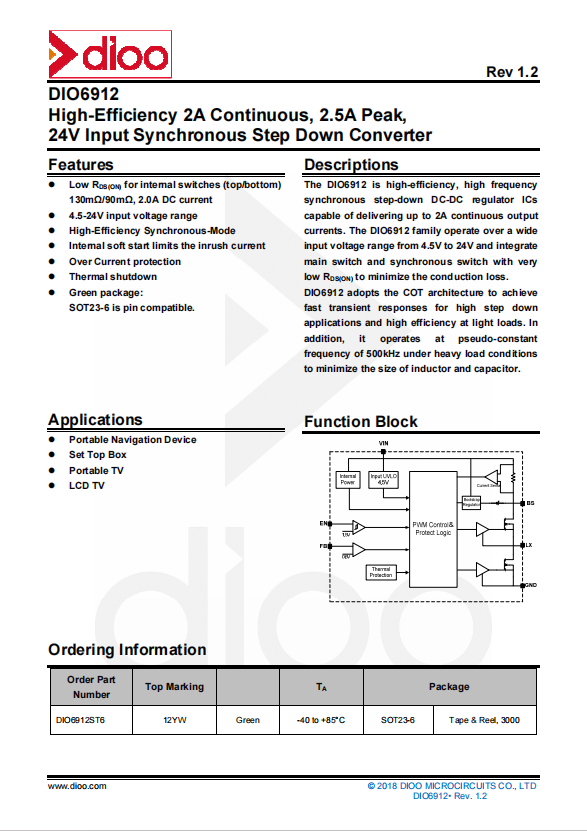

Product Descriptions
The DIO6912 is high-efficiency, high frequency synchronous step-down DC-DC regulator ICs capable of delivering up to 2A continuous output
currents. The DIO6912 family operate over a wide input voltage range from 4.5V to 24V and integrate main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss. DIO6912 adopts the COT architecture to achieve fast transient responses for high step down applications and high efficiency at light loads. Inaddition, it operates at pseudo-constant frequency of 500kHz under heavy load conditions
to minimize the size of inductor and capacitor.
Product Features
? Low RDS(ON) for internal switches (top/bottom) 130m?/90m?, 2.0A DC
current
? 4.5-24V input voltage range
? High-Efficiency Synchronous-Mode
? Internal soft start limits the inrush current
? Over Current protection
? Thermal shutdown

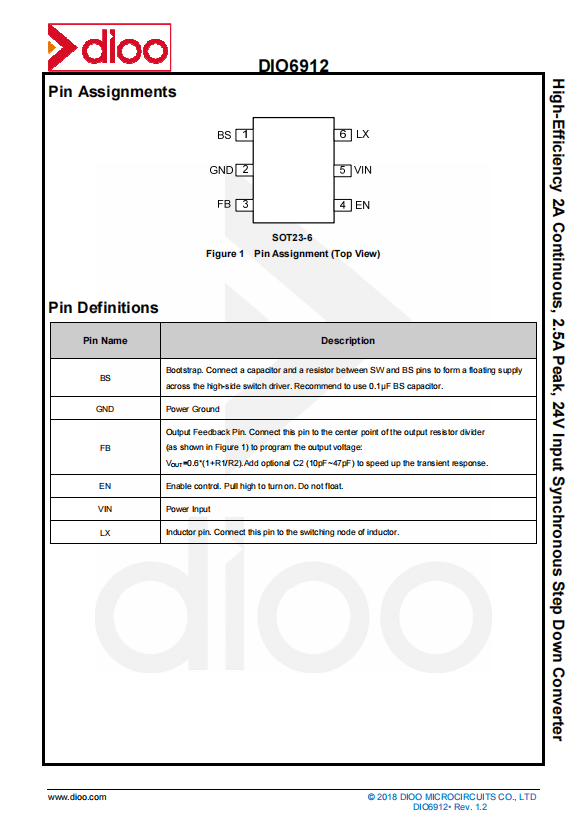

?Green package: SOT23-6 is pin compatible.

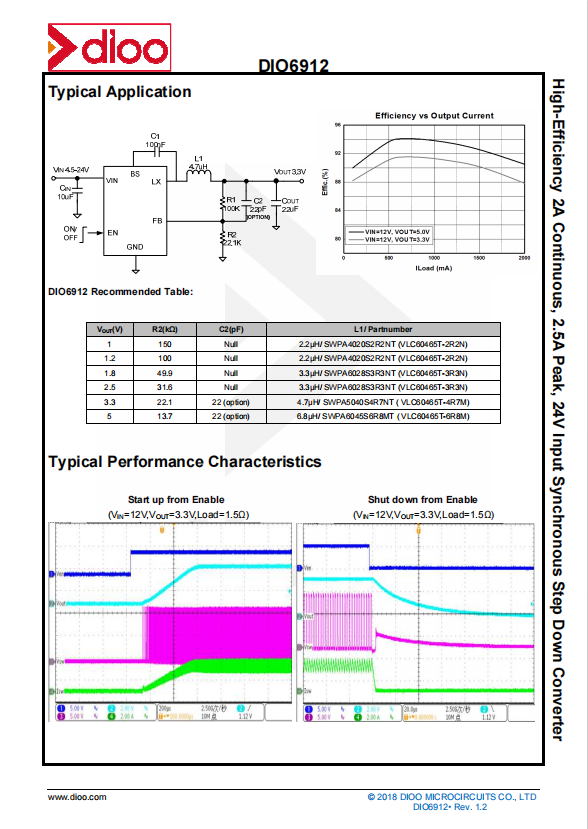

Product Applications
? Portable Navigation Device
? Set Top Box
? Portable TV
? LCD TV

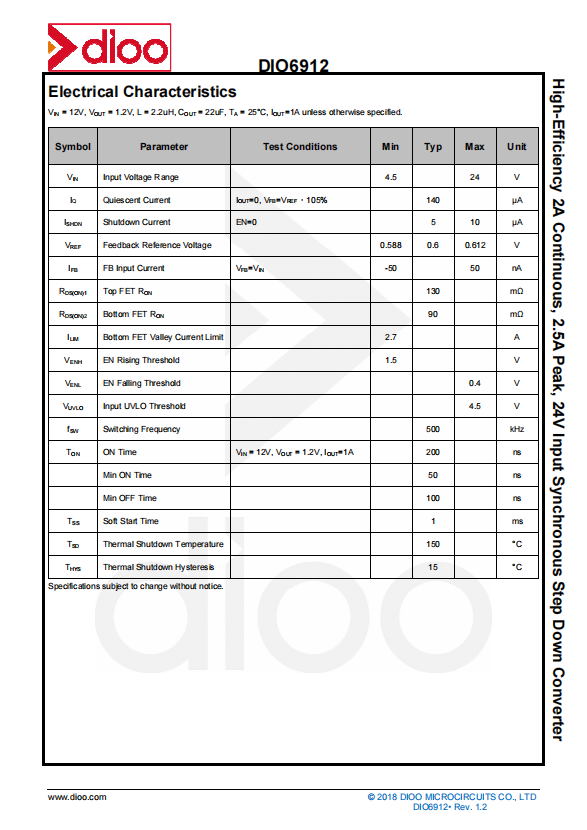

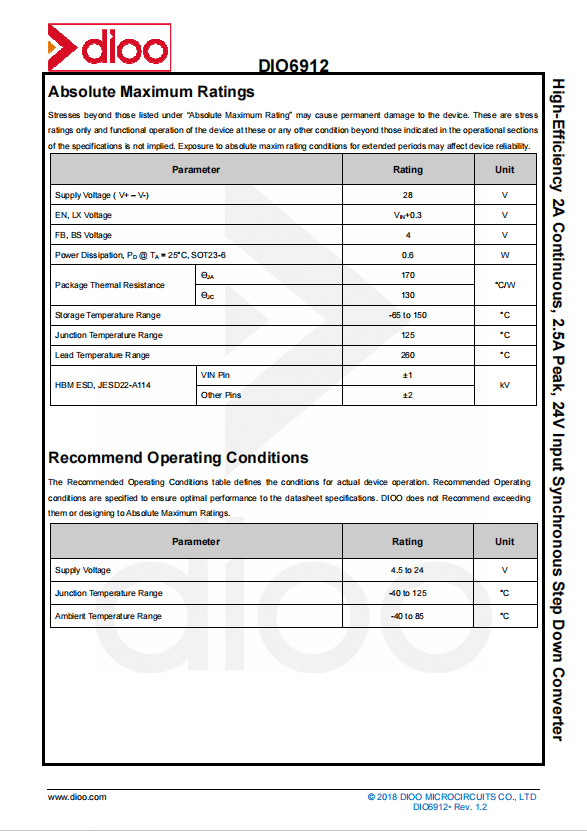

Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-DIO6912ST6 |
| Manufacturer: | DIOO |
| Product Category: | Switching Voltage Regulators |
| Output Current: | 2 A |
| Input Voltage, Max: | 24 V |
| Number of Outputs: | 1 Output |
| Topology: | Buck |
| Package / Case: | SOT-23-6 |
| Mounting Style: | SMD/SMT |
| Switching Frequency: | 500 kHz |
| Minimum Operating Temperature: | - 40 C |
| Maximum Operating Temperature: | + 85 C |
| Packaging: | Reel |
| Packaging: | Cut Tape |
| Input Voltage, Min: | 4.5 V |
| Brand: | DIOO Microcircuits |
| Product Type: | Switching Voltage Regulators |
| Factory Pack Quantity: | 3000 |
| Subcategory: | PMIC - Power Management ICs |

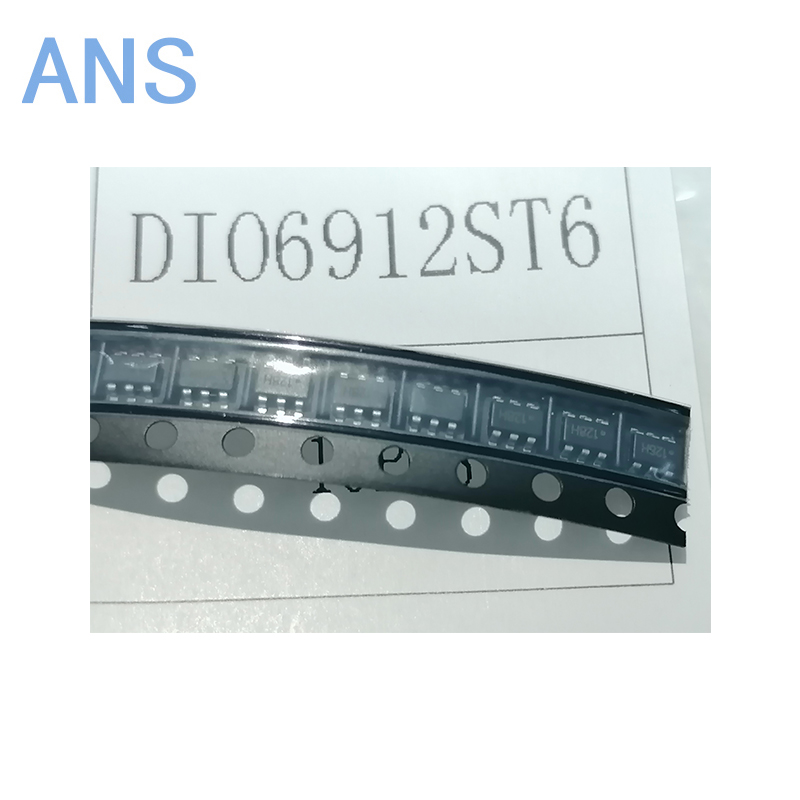

Actual product photos
